• 3. Two categorical variables

Motivating scenario: You want to explore how two categorical variables are associated.

Learning goals: By the end of this sub-chapter you should be able to

1. Make barplots with geom_bar() and geom_col().

2. Make stacked and grouped barplots.

3. Know when to use geom_bar() and when to use geom_col().

---

Categorical explanatory and response variables

Above, we saw that most plants received no visits, so we might prefer to compare the proportion of plants that did and did not receive a visit from a pollinator by some explanatory variable (e.g. petal color or location). Recall that we have added the logical variable, visited, by typing mutate(visited = mean_visits > 0).

Making bar plots: A Step-by-Step guide. There are two main geoms for making bar plots, depending on the structure of our data:

• If we have raw data (i.e. a huge dataset with values for each observation) use geom_bar().

• If we have aggregated data (i.e. a summary of a huge dataset with counts for each combination of variables) use geom_col()

Note: Here we map petal color onto the x-axis, and visited (TRUE / FALSE) onto the fill aesthetic.

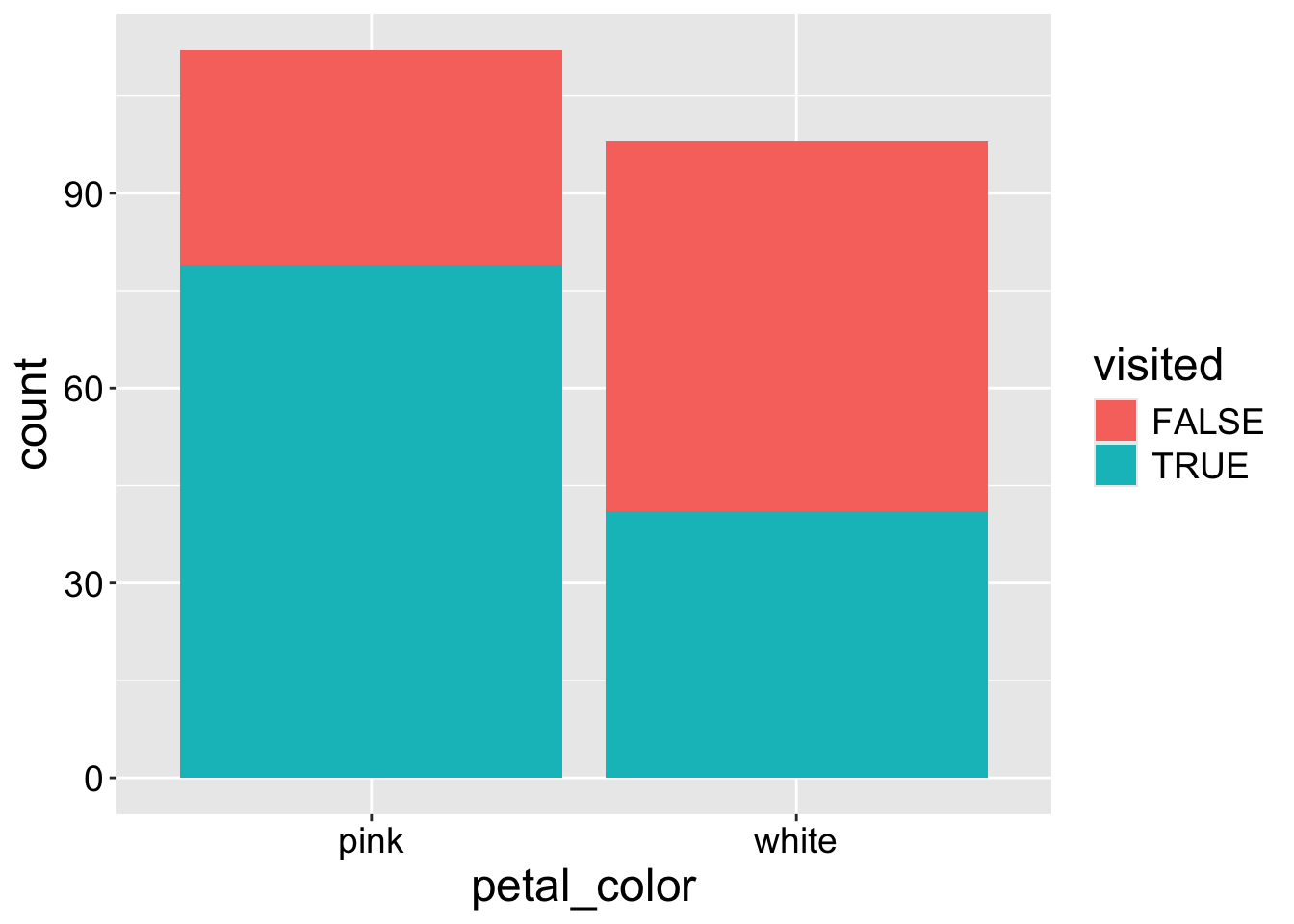

Stacked barplot

ril_data |>
    filter(!is.na(petal_color), !is.na(mean_visits))|>
    mutate(visited = mean_visits >0)|>
  ggplot(aes(x = petal_color, fill = visited))+
  geom_bar()

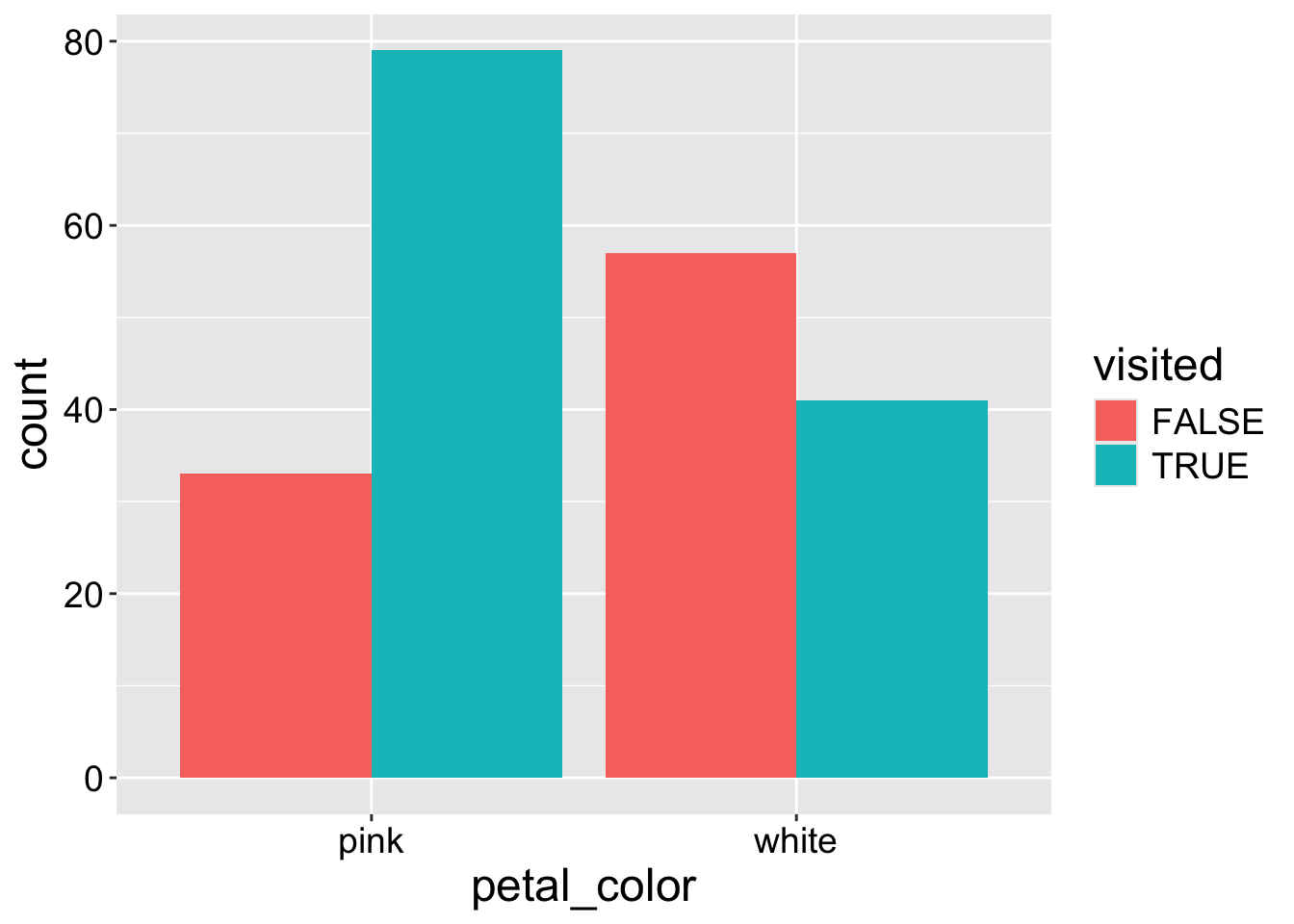

Grouped barplot

ril_data |>
    filter(!is.na(petal_color), !is.na(mean_visits))|>
    mutate(visited = mean_visits >0)|>
  ggplot(aes(x = petal_color, fill = visited))+
  geom_bar(position = "dodge")

Aggregated data

If you had aggregated data, like that below. We need to plot these data somewhat differently. There are two key differences:

1. We map our count (in this case n) onto the y aesthetic.

2. We use geom_col() instead of geom_bar().

location	petal_color	visited	n
GC	pink	FALSE	32
GC	pink	TRUE	23
GC	white	FALSE	46
GC	white	TRUE	2
SR	pink	FALSE	1
SR	pink	TRUE	56
SR	white	FALSE	11
SR	white	TRUE	39

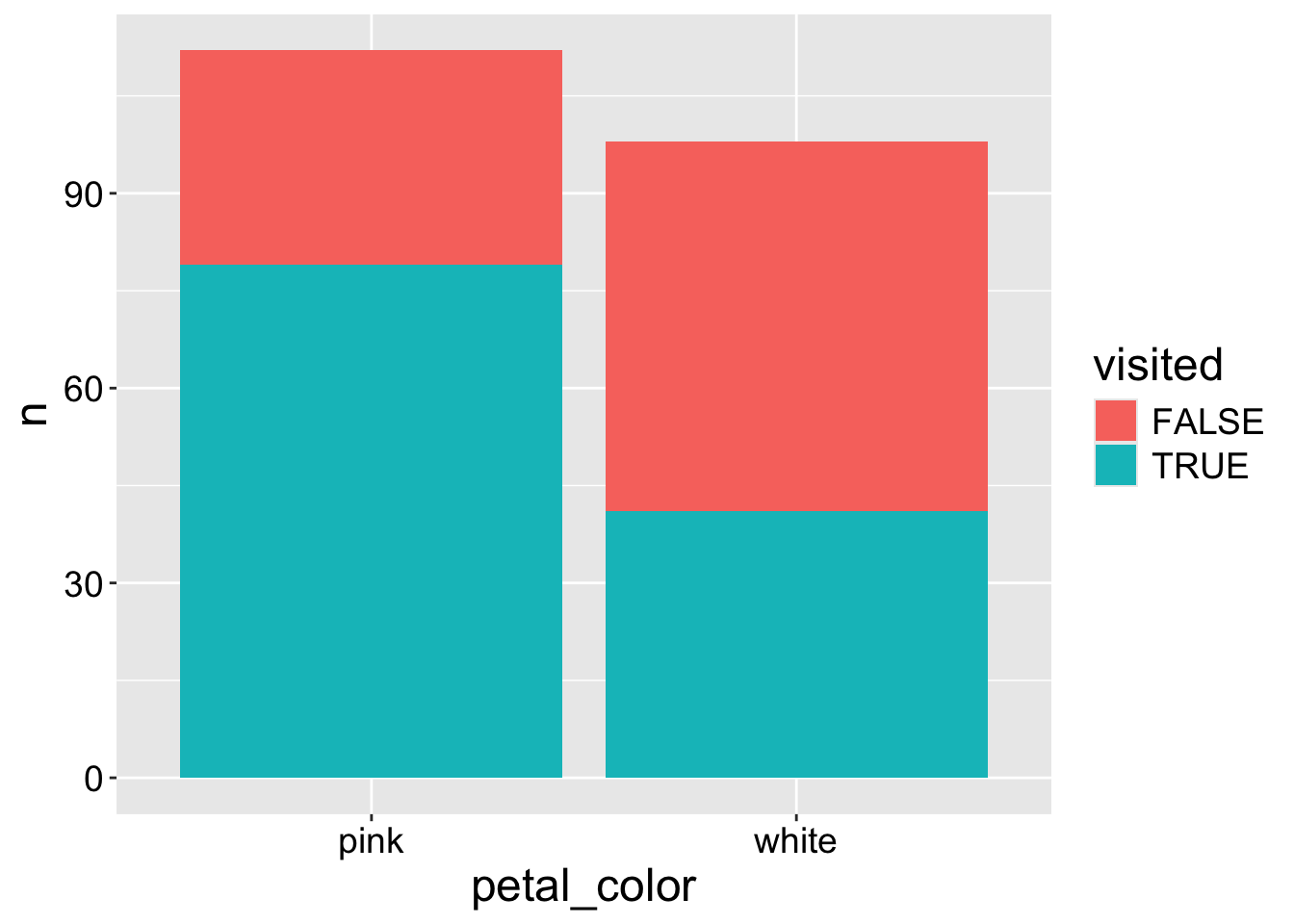

ggplot(data = aggregated_pollinator_obs,
       aes(x = petal_color, y = n, fill = visited))+
  geom_col()

Interpretation: We see that a greater proportion of pink-flowered plants receive visits compared to white-flowered plants.
